Environmentally Friendly CTCP Plate Treatment Free Offset CTP Plate UVCTP Plate

Environmentally friendly CTCP plate, offset CTP plate, treatment free CTP plate, UVCTP plate

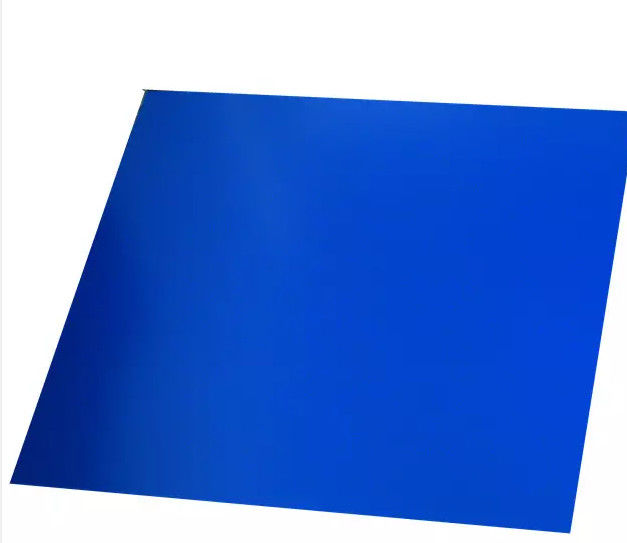

Positive Computer to Conventional Plate

UV CTP plate

Features:

1. High quality aluminium substrate

2. Special coating to give excellent inaging quality

3. High Resolution.

4. High Pressrun

5. A wide latitude in operation condition

6. It it suirtable for superb color business printing

Technical parameters:

Name : offset plates CTcP,UV-CTP plate:

Application: Newspaper printing, Commercial printing etc...

Alloy and temper : 1060/H18

Gauge : 0.14mm -0.30mm

Spectral Sensitivity : 400-410nm

Sensitivity : 70-90 mj/cm²

Developing Temperature : 25±2℃

Developing Time : 20±5s

Safelights: safe yellow lights

Dot reproduction:2-98%@ 175 lpi

Press suns of 50000 (un-baked), 100000( baked)

Shelf Life : 18 months shelf life from date of production when stored in a cool,dry and lucifugal area in original packing.

Storage conditions: temperature 5-30°C, RH:≤65°C, Stacking height :≤1.2m

Suitable for 405nm CTCP printing;developing system .
