รายละเอียดสินค้า:
|
| ลักษณะขนาดรายละเอียด: | 4500*1200*1150มม | วิธีการทำงาน: | โอนอัตโนมัติ |
|---|---|---|---|
| ขนาดผลผลิตที่มีประสิทธิภาพ: | 1130*880มม | ขนาดเอาต์พุตขั้นต่ำ: | 400*350มม |
| พารามิเตอร์แรงดันไฟฟ้า: | 220V | วัสดุจาน: | แผ่นความร้อน CTP |
| เน้น: | CTP Computer To Plate Printing Machine,2400dpi Computer To Plate Printing Machine,2400dpi computer to plate systems |
||

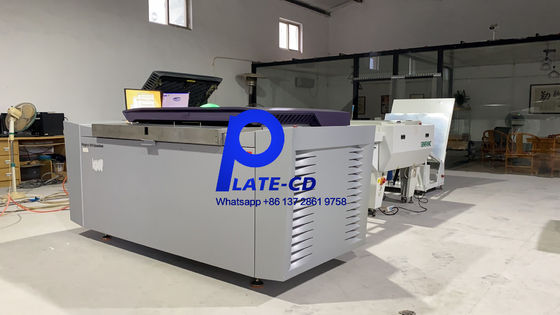

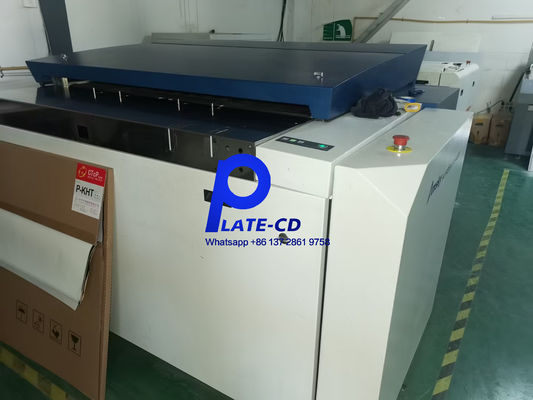

Computer plate making machine (CTP machine, CTCP machine)
The plate making adopts the most advanced and latest fiber laser, and the imaging is accurate and fast.
Basic parameters of the machine:
Maximum production size: 1130*880mm,
Minimum production size: 400*350mm
Applicable sheet model: 0.15 thickness -0.4 thickness.
Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)
Applicable: CTP plate, CTCP plate and double layer CTP plate.
Different models of machines have different production times and speeds.
| Technical Parameters | ||||||||||
| Model | Thermal | UV | ||||||||
| T824 | T832 | T848 | T864 | T8128 | U824 | U832 | U848 | U864 | U8128 | |
| NO.of lasers | 24 | 32 | 48 | 64 | 128 | 24 | 32 | 48 | 64 | 128 |
| Throughput(1130*800) | 13 | 18 | 23 | 28 | 45 | 13 | 18 | 23 | 28 | 45 |
| Max.Min.Format | MAX:1160*940 MIN:400*350 | MAX:1160*940 MIN:400*350 | ||||||||
| Laser source | 830nm | 405nm | ||||||||
| Resoiution | 2400DPI | |||||||||
| Loading system | Automatic,Semi-Auto(Optional Auto-loader) | |||||||||
| Plate requirement | CD. 0.15-0.4 (Thermal plate) | CD. 0.15-0.4 UV plate | ||||||||
| Interface | 1-bit Tiff interface and direct workflow driver,support CIP3/CIP4 | |||||||||
| Power | AC220V,50-60HZ 5.5KVA | |||||||||
| Work environment | Temperature:20-25℃,Humility:40%-80% | |||||||||
ผู้ติดต่อ: Summer
โทร: +8613728619758
